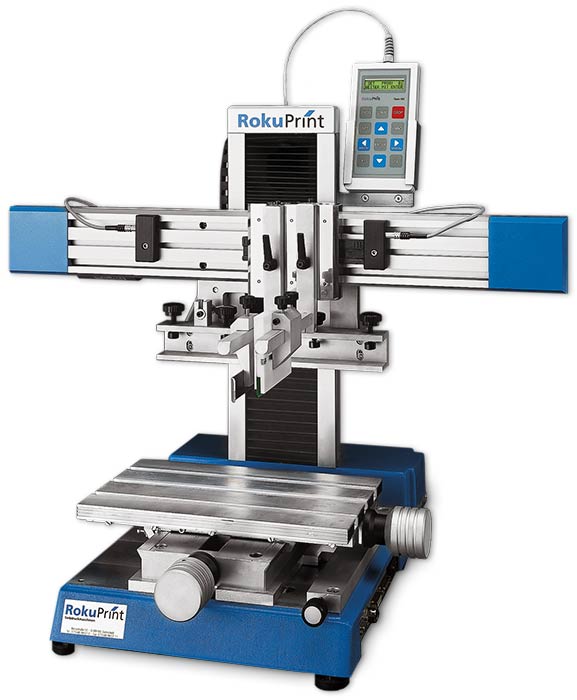

Universal screen printing machine SD 05 for flatprinting

Universal screen printing machine for flatprinting up to print size ( appr. ) 320 x 220 mm ( 12,5 x 8,5 inch )

Technical data SD 05

Max. printing size : ( appr. ) 320 x 220 mm ( 12.5 x 8.5 inch )
Max. space between screen and base ( appr. ) 160 / 250 mm ( 6 / 9.5 inch ) ( with / without adjustable table KO 03 )
Max. printing capacity : ( appr. ) 1800 prints / hour ( automated )
Printing attachment : pneumatic squeegee mechanism with separately adjustable printing squeegee and presqueegee
Option : electromechanical squeegee mechanism ( machine needs no compressed air )
Screen frame : aluminium frame
Rectangular profile : recommended 20 x 20 mm ( 0.8 x 0.8 inch )
Max. usefull screen size : ( appr. ) 600 x 300 mm ( 23.5 x 11.5 inch )
Connective load : 230 vs. / 50 cps
Power input : 200 VA
Driving system : controlled D.C. motors
Weight : ( appr. ) 50 kg ( appr. 110 lb )
Measurements ( w x l x h ) : ( appr. ) 820 x 550 x 660 mm ( 32 x 21.5 x 26 inch )


Control :
Microprocessor control . Programmable and menue guided adjustment of print stroke , screen detachment , screen lifting , printing speed and starting position . Electronic microadjustment and correction of the screen detachment in programme operation , adjustable continous operation , electronic counter , manual operating means with clear text display .

Signal interface : 24 V / DC with galvanically seperated inputs and outputs for starting the automation components , and for integrating the screen printing machine into the complete production plant .
