Product Description
The LIDER DRY HORIZONTAL is a dryer suitable to dry the emulsion and water from screen printing screens.

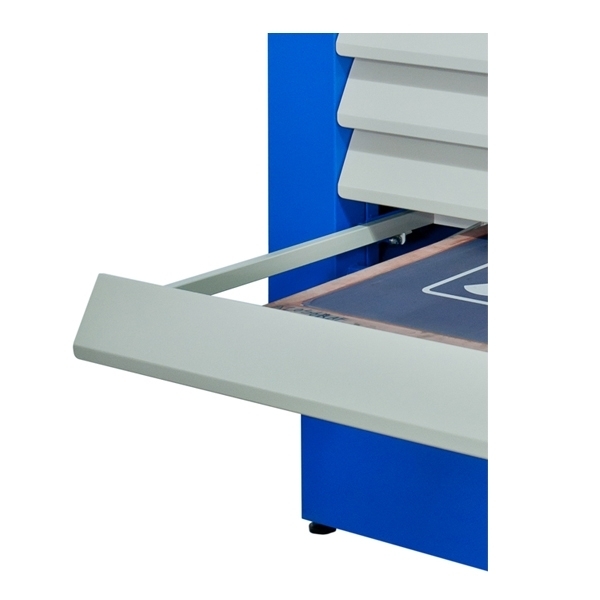

- Drawers smoothly running in ball-bearing slides with end stop;

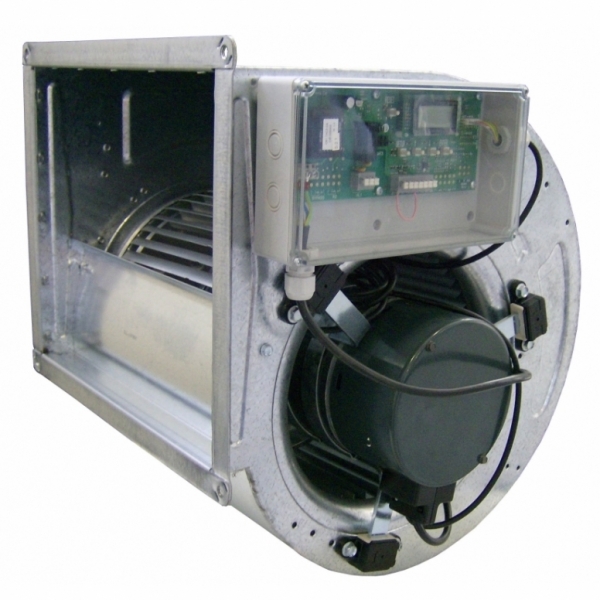

- Cabinet with forced ventilation;
- Heating elements in cromion niquel;

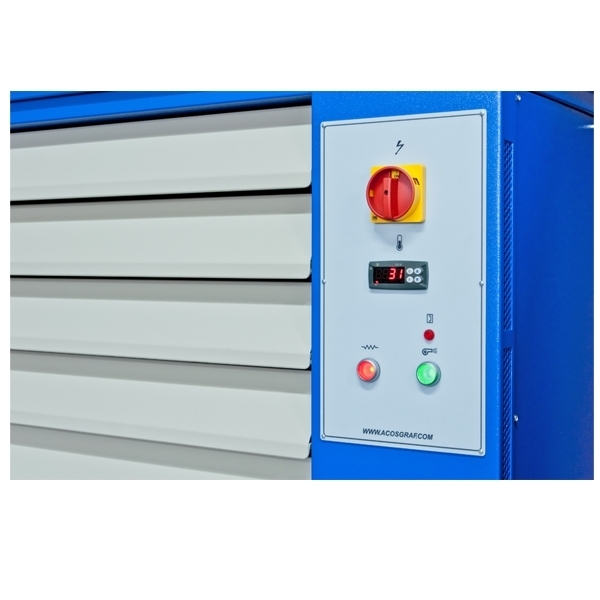

- Digital temperature controler with digital display;
- Maximum working temperature up to 50 degrees;
- Horizontal drying from wet or coated screens;
- Special design to have the possibility do dry several screens sizes in 1 drawer;
- Other measures can be made with request.
| LIDER DRY HORIZONTAL | Units | LD H – 0710 / 5 | LD H – 0710 / 10 | LD H – 0912 / 5 | LD H – 0912 / 10 | LD H – 1013 / 5 | LD H – 1013 / 10 |
|---|---|---|---|---|---|---|---|
| Number of Drawers | 5 | 10 | 5 | 10 | 5 | 10 | |
| Maximum working temperature | C | 50 | 50 | 50 | 50 | 50 | 50 |
| Maximum screen size | cm | 70×100 | 70×100 | 90×120 | 90×120 | 100×130 | 100×130 |
| External depth | cm | 90 | 90 | 110 | 110 | 120 | 121 |
| External width | Cm | 157 | 157 | 172 | 177 | 187 | 187 |
| External height | Cm | 110 | 164 | 110 | 164 | 110 | 165 |
| Power install | Kw | 2 | 4 | 3 | 5 | 4 | 6 |
| Weight | Kg | 180 | 220 | 200 | 250 | 220 | 270 |
| Voltage |
