Product Description

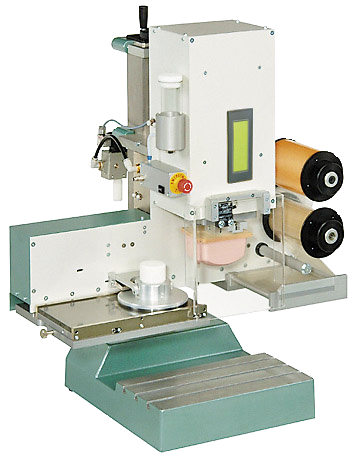

The LCN Line includes ideal pad printing machines to integrate into entire pad printing installations. Due to its compact construction they can be used in very tight spaces. With the help of a machine base they can also be used manually as stand-alones.
| Printing capacity: | wo.c. 1800/hr, w.c. 1200/hr |
| Printing force: | max. 1100N |
| Drive: | pneumatisch |
| Air consumption: | 135 l/min |
| Compressed air supply: | 5–6 bar (87 psi) |
| Control system: | PLC Panasonic |
| Main voltage: | 110–240V / 50–60Hz. |
| Weight: | Machine: 61kg, Stand: 22kg |
| Cliché size open system: | – |
| Cliché size closed system: | max. 150 x 300mm |
| Cliché thickness: | 0.5/10mm |
| Cups: | 1×120,1x140mm |
| Number of colours: | 1 |
| Data sheet in PDF: | LCN 151 |
